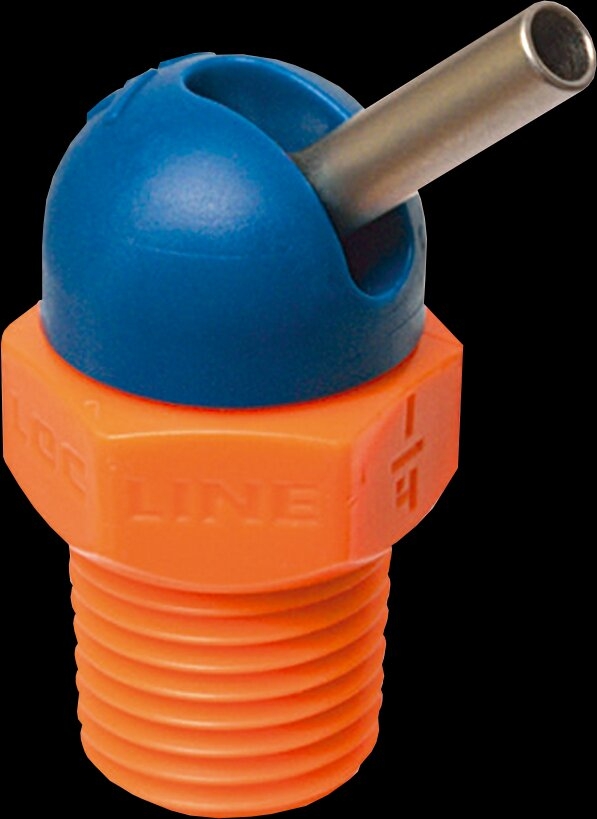

Designed specifically for confined spaces, the LOC-LINE FLEXI CD nozzle is one of the most compact HD nozzles on the market, with a 32mm headroom (including 12mm thread height).
Technical specifications
Working pressure range: up to 70 bar high pressure
Swivel range: Smax = 72 °
Turning range: 360 ° rotatable
Special features
Particularly compact design
Screwed in and aligned, is the CD nozzle
absolutely stable in position! A mother is not
required.
versions
2 thread sizes: 1/8 "and 1/4" NPT / BSPT
4 nozzle diameters: 1.6 / 2.2 / 3.0 / 4.1 mm
4 nozzle lengths: 0 / 6.4 / 12.7 / 31.8 mm

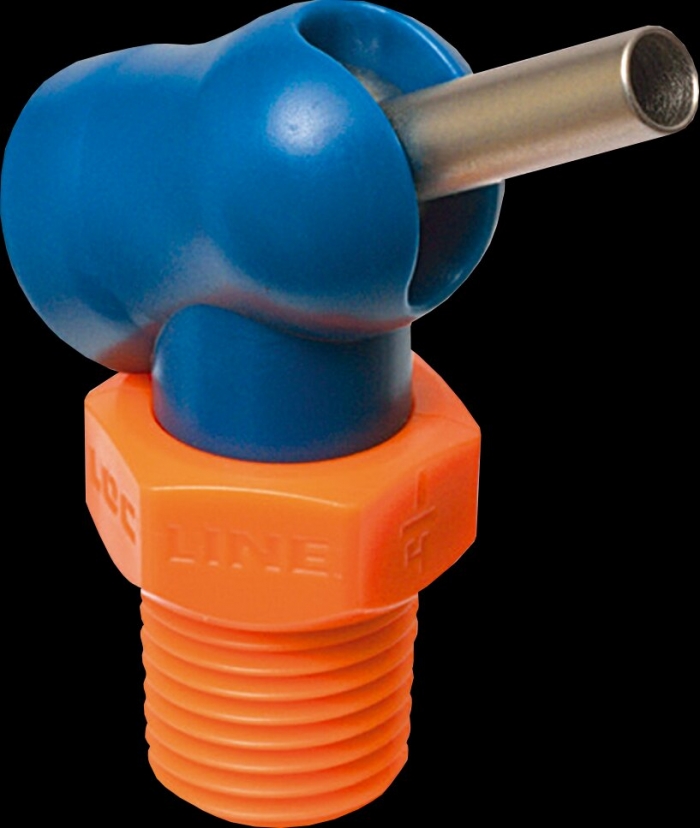

Two nozzle types are available: The particularly compact CD nozzle and the XW nozzle with extra-large swivel range up to 110 °. Both series operate at up to 70 bar high pressure and have a 1/4 "or 1/2" NPT / BSPT pipe thread connection. They are suitable for all turning centers, MultiTask and vertical lathes and can be connected directly to the machining tool or a separate pump unit for the supply of high-pressure coolant.
LOC-LINE FLEXI high-pressure nozzles
The advantages at a glance:
WORKING PRESSURE RANGE UP TO 70 BAR!
SIMPLE, EXACT AND QUICKLY ADJUSTABLE
ABSOLUTE POSITION STABILITY!
A readjustment as with other nozzles is no longer necessary.
BETTER HEAT REMOVAL
Whether low pressure or high pressure, with LOC-LINE FLEXI HD nozzles cooling can be significantly improved. The nozzles deliver coolant or air precisely, at the correct angle and in sufficient quantity to the cutting zone, even at high rotational speeds.
BETTER SPAN BREAK, BETTER SPAN DISPOSAL
In conjunction with high-pressure cooling, a better chip control is also achieved, in particular in processes in which, due to the process and the workpieces, the chips can not run off unhindered or tend to stick together.
