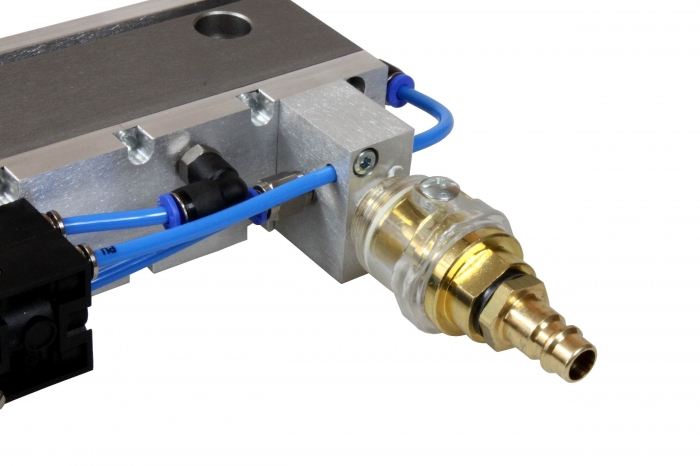

Wherever it is important to work quickly, flexibly and efficiently, our pneumatic clamps are used. These are made of cast aluminum. To prevent wear, all contact surfaces of the moving parts are hard-anodized. In addition, an integrated lubricator ensures constant lubrication of the parts. A 5/3 way directional valve provides a two-way stroke, allowing you to quickly open and close the clamp. Through the provided mounting holes, the clamp can be fasten easily on e.g. a T-slot plate or threaded switch plate.
Special sizes can be realized on request!
Product Details Pneumatic Clamp 150:
Jaws dimensions: 150 x 39.6 mm
Clamping jaws Material: Aluminum
Body Material: Cast aluminum hard-anodized
required pressure: 2 bar
Stroke: 5 mm
Diameter fixing holes: 9 mm
double-acting stroke
exchangeable jaws
end Stop at the counter-jaw
clamping force:
2 bar: 726.6 N
4 bar: 1453.2 N
6 bar: 2179.8 N
8 bar: 2906.0 N
10 bar: 3633.0 N
Delivery:
1x pneumatic clamp
1x counter jaw with stop
1x tool case for storage
Wherever it is important to work quickly, flexibly and efficiently, our pneumatic clamps are used. These are made of cast aluminum. To prevent wear, all contact surfaces of the moving parts are hard-anodized. In addition, an integrated lubricator ensures constant lubrication of the parts. A 5/3 way directional valve provides a two-way stroke, allowing you to quickly open and close the clamp. Through the provided mounting holes, the clamp can be fasten easily on e.g. a T-slot plate or threaded switch plate.
Special sizes can be realized on request!
Product Details Pneumatic Clamp 150:
Jaws dimensions: 200 x 49.6 mm
Clamping jaws Material: Aluminum
Body Material: Cast aluminum hard-anodized
required pressure: 2 bar
Stroke: 5 mm
Diameter fixing holes: 9 mm
double-acting stroke
exchangeable jaws
end Stop at the counter-jaw
clamping force:
2 bar: 1200 N
4 bar: 2043 N
6 bar: 3065 N
8 bar: 4087 N
10 bar: 5109 N
Delivery:
1x pneumatic clamp
1x counter jaw with stop
1x tool case for storage
