product features:
Changing the clamping length - in just a few seconds from 0-3000 mm
Changing the clamping length - without the use of tools
Easy maintenance - the spindles are lubricated with grease and sealed with O-rings (heavy system)
Workspace - always near the operator
Quick cleaning - no holes or grooves/slots
Zero point clamping systems - integrable
Upgradeable to hydraulic clamping - on request
High clamping forces - 7to at 200 Nm (up to 20to for the "heavy system")
Robotic solutions possible (jaw change, etc.) - already realized projects
Standard accessories - large range of jaws etc.
Solutions adapted to your application - extensive experience with special solutions
System types:

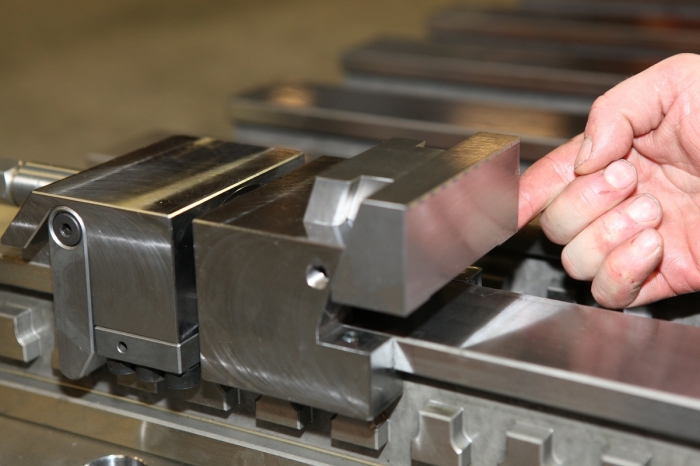

Flexible: Adjustment of the flexible jaw by simply lifting the locking mechanism
Basic: Adjustment of the flexible jaw by pulling and staking a bolt
Standard lengths of the two systems are 600mm, 800mm, 1000mm. The Basic System also has a 400mm length. Clamping force 7to at 200Nm. Jaw width 111mm. Spindle stroke of the clamping jaw 45mm. Any special lengths on request!

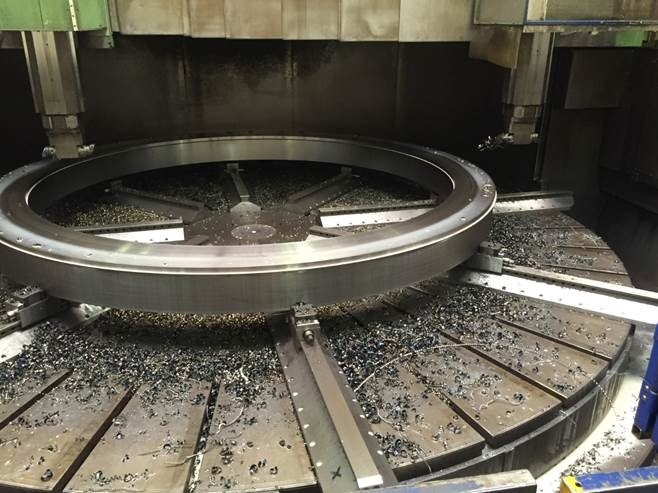

Heavy: length 500mm, 740mm, 1040mm in standard. 20to clamping force. Inside to outside clamping + outside to inside clamping. Spindle stroke of the clamping jaw 80mm. Ideal for carousel lathes + heavy duty machining etc.

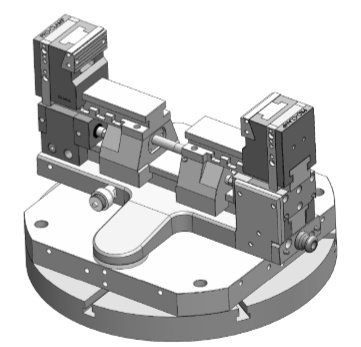

Centering vises: clamping range 10-420mm without spindles to change, etc. In the standard, the clamping adjustment is made manually, but there is an unique hydraulic package so the entire clamping is moved hydraulically! The stable construction distributes the clamping force homogeneously to every point of the system.
